DIY 10×12 Modern Shed

Building a DIY 10×12 Modern Shed doesn’t have to break the bank or require professional expertise. When I priced out a pre-built 10×12 modern shed with similar features, it came in at over $8,600 with cheap materials and junky windows. My goal was simple: build a 10×12 modern shed that was twice as good for half the cost—around $4,300. Spoiler alert: I came in at $3,785, which is even less than the most basic shed model on the market.

Our DIY 10×12 Modern Shed features a sleek lean-to design, three custom acrylic windows, double doors, and beautiful lap siding that makes it look like a professional build. Whether you’re looking for extra storage, a workshop, or a backyard office, this project proves you can create a stunning DIY 10×12 Modern Shed without the premium price tag. Here’s how I did it, from foundation to final paint.

Before we get started, make sure to follow me on YouTube, Facebook, and Instagram to keep up with all my latest builds!

If you want more home DIY projects, check out some of my favorites. The basic and straightforward directions will make these projects easy.

DIY Tote Storage Rack: Free plans!
Build your own DIY Smokeless Fire pit
Modern DIY Adirondack Chair

Here is what you’ll need for the project:

Affiliate links are used on this page.  See my disclosure page for info on affiliate programs.

How to Build a DIY 10×12 Modern Shed: Step-by-Step Overview

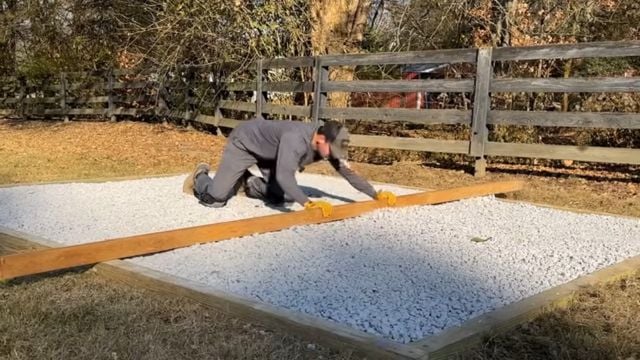

Step 1: Foundation & Site Preparation

Cost: $877

• Select the most level ground possible (less than 5.5″ slope is ideal if using 4×6 timbers)
• Remove grass and dig trenches for pressure-treated 4×6 timbers
• Install 2″ of 3/4″ clean gravel as drainage base
• Set ground beams using rebar anchors for stability
• Level everything carefully—this is your critical foundation

Key tip: Site selection matters! The flatter your ground, the less excavation and material you’ll need for your DIY 10×12 modern shed. You really don’t want the difference in your site to be more than the height of the timber you’re using.

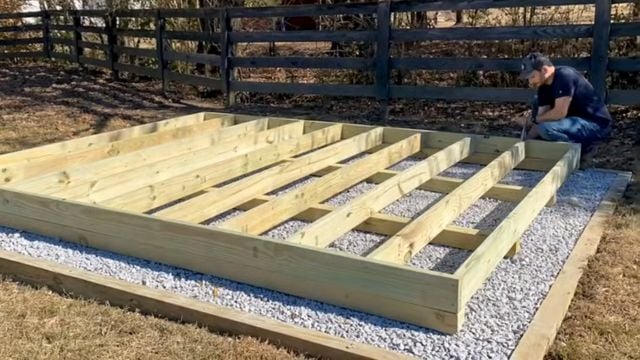

Step 2: Building Your Base

Cost included in Foundation

• Construct a 4×4 skid system (10′ x 12′ actual shed on 12′ x 14′ foundation)
• Frame perimeter with 2×6 pressure-treated joists spaced 16″ on center
• Add blocking between joists for rigidity
• Install 3/4″ RTD plywood sheathing
• Square everything before final fastening

Why skids? A concrete slab would cost $960-$1,440, plus you lose portability for your DIY 10×12 modern shed.

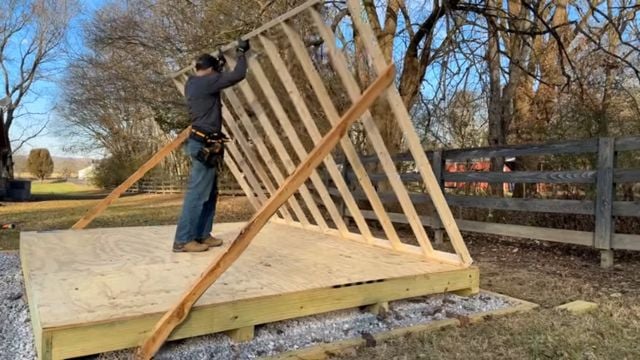

Step 3: Wall Framing

Cost: $655

• Frame back wall first (under 8′ height for lean-to design)
• Build sidewalls at same height as back
• Construct front wall with door and window openings (tallest wall)
• Use king studs and jack studs for headers
• Create double 2×6 headers for door opening
• Tie everything together with overlapping top plates

Pro move: Frame long walls first to use the foundation as a flat assembly surface.

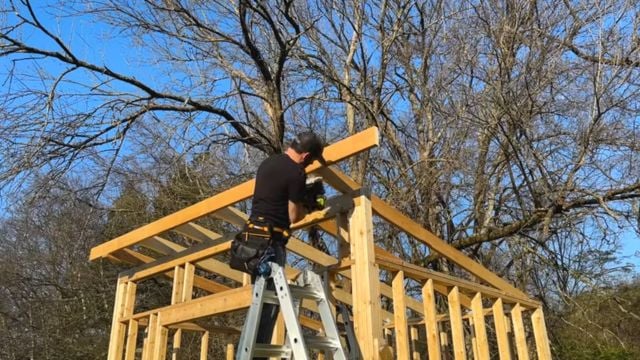

Step 4: Roof Structure

Cost included in Roofing

• Cut 2×6 rafters with proper pitch angles (2:12 pitch)
• Create bird’s mouth notches for solid bearing on top plates
• Install rafters 24″ on center
• Add ridge boards front and back
• Install blocking for soffit attachment
• Frame gable ends with cripple studs

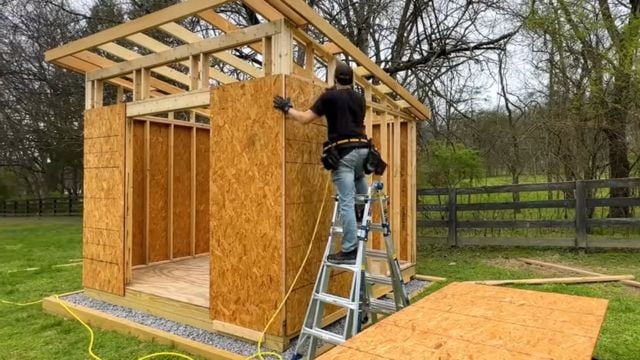

Step 5: Sheathing & Roofing Your DIY 10×12 Modern Shed

Cost: $947

• Install 7/16″ OSB on walls first to stabilize structure
• Apply house wrap (3′ rolls easier than 9′ for solo work)
• Use Georgia Pacific ForceField OSB for roof (built-in weather barrier)
• Install drip edge starting at back, working forward
• Tape all seams with quality flashing tape
• Apply architectural shingles with proper stagger pattern
• Create custom starter strips by cutting off shingle tabs

Weather wisdom: Always install from bottom up so water sheds properly over seams.

Step 6: Exterior Trim

Cost included in Windows/Doors

• Install base trim (rat boards) with 3/8″ gap above foundation
• Add soffit using 1/2″ painted plywood
• Create mitered corner trim from 1×4 LP Smart Siding
• Install 16′ fascia boards (way cheaper than 12′ PVC)
• Pre-paint trim before installation when possible

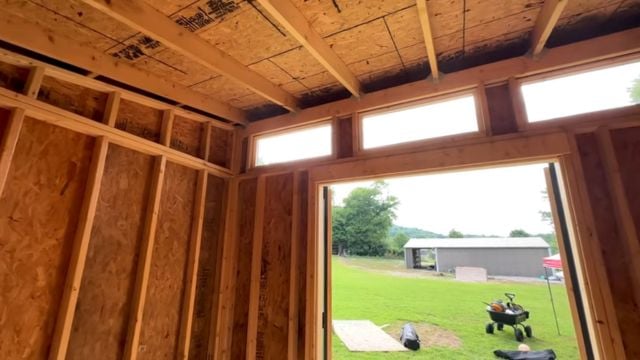

Step 7: Custom Windows for Your DIY 10×12 Modern Shed

Cost: $445

• Frame window openings with 1×4 interior frames
• Flash with ZIP tape for waterproofing
• Build custom windows using 1/8″ acrylic sheets
• Sandwich acrylic between interior and exterior stops
• Seal with clear silicone caulk
• Add decorative mullions/stops on interior
• Install 8×8″ vents in trim blocks for cross-ventilation

Budget win: Custom acrylic windows cost $57 vs. hundreds for pre-made units.

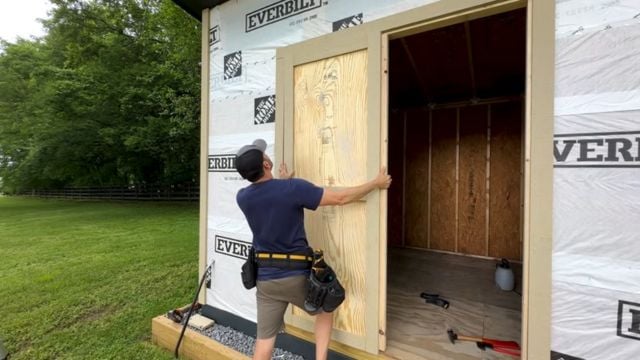

Step 8: Installing Doors

Cost: $445

• Build 2×4 frames with pocket hole joinery
• Add 1×4 door jamb with 1/16″ spacing for door thickness
• Sheath with OSB backing and plywood front
• Apply matching trim to coordinate with siding
• Install as double doors with overlap design
• Use 6 hinges total (3 per door)
• Add locking handle with keyway
• Install spring latches for stationary door
• Add aluminum threshold to protect bottom edge

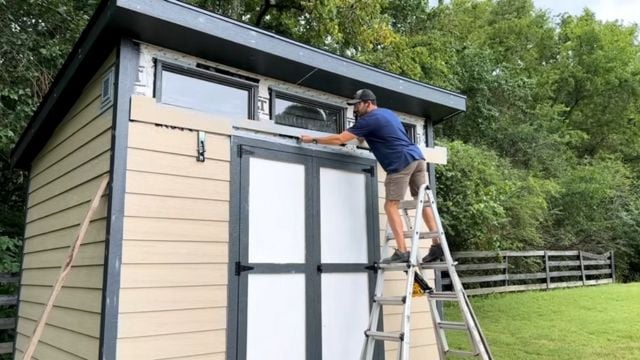

Step 9: Siding & Paint

Cost: $860

• Install Z-flashing at base under house wrap
• Create starter strip 3/8″ off deck
• Use wood composite lap siding (8″ reveal with 1-1/8″ overlap)
• Start at back for practice before tackling front
• Use Gecko Gauges for consistent spacing (watch for dipping!)
• Cut custom angles for lean-to roof line
• Flash above door and window trim
• Caulk all seams and expansion gaps
• Prime all cut edges before installation

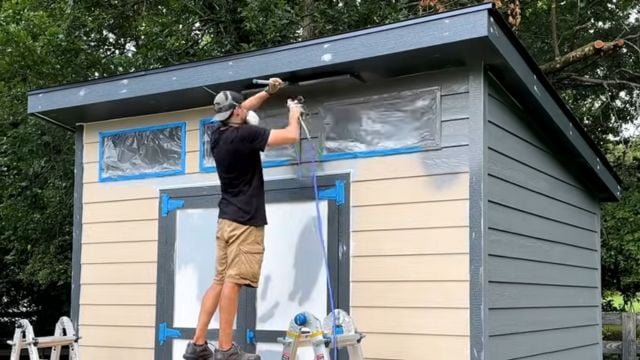

• Spray paint with airless sprayer for professional finish

Spacing trick: Mark a story stick with reveal measurements to ensure consistent layout around your entire DIY 10×12 modern shed.

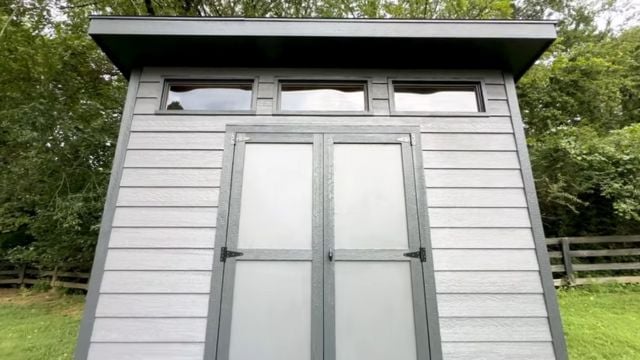

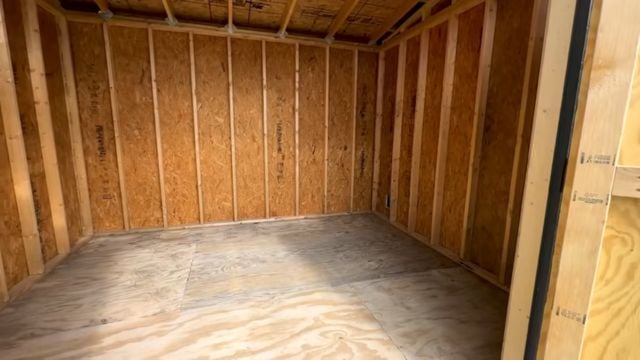

DIY 10×12 Modern Shed: Final Results

Total Cost: $3,785 (under budget by $515!)

This DIY 10×12 modern shed came in at less than half the cost of a comparable pre-built unit, and with significantly better materials and craftsmanship. The lap siding, custom windows, and attention to weatherproofing details make this DIY 10×12 modern shed look like it cost twice as much.

DIY 10×12 Modern Shed Cost Breakdown:

• Foundation: $877
• Framing: $655
• Roofing: $947
• Windows/Doors/Trim: $445
• Siding & Paint: $860

Building a DIY 10×12 modern shed took several months of weekend work (complicated by weather and cicadas!), but the result is a beautiful, functional structure that adds serious curb appeal to the property. Whether you’re a beginner or experienced builder, this DIY 10×12 modern shed project is absolutely doable with patience and attention to detail.
